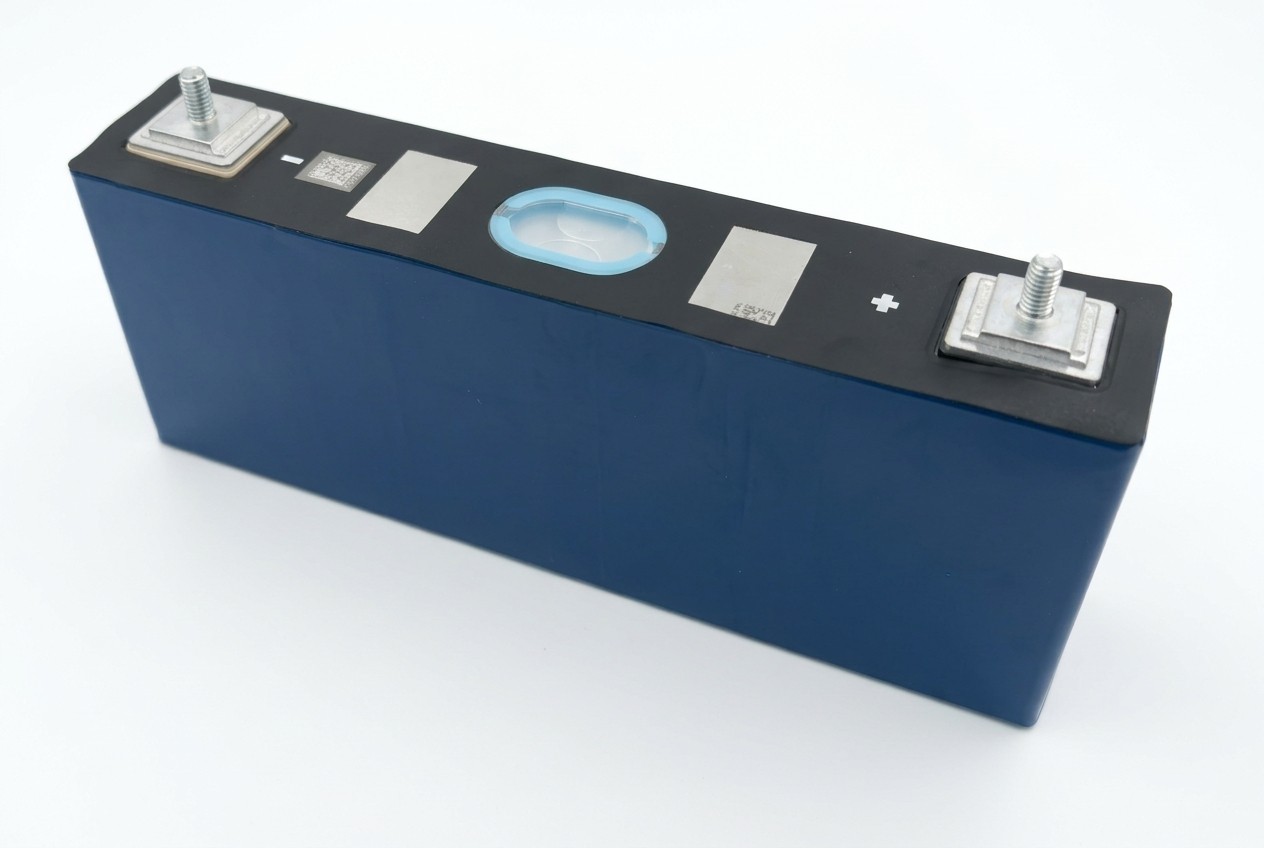

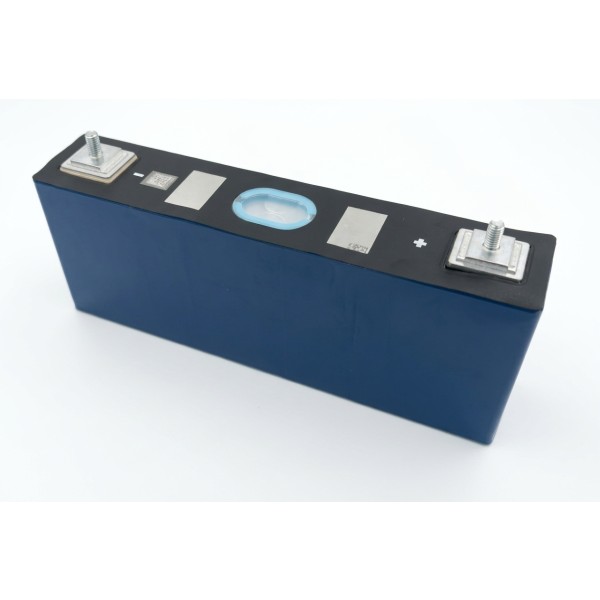

Článek CALB L221N122A NMC 3,67V / 122 Ah A grade

Popis produktu

Battery Model: L221N122A

Rozměry: 220x45x82mm bez terminálů, 220x45x97mm s terminály

Terminály: M6 single

Rated Voltage: 3.68v(1C Discharge)/

3.74v(Standard Discharge)

Rated Capacity: 122Ah(1C Discharge)/

125.4Ah(Standard Discharge)

Rated Energy: 448.96Wh(1C Discharge)/

469.00Wh(Standard Discharge)

Mass Energy Density: 246.8Wh/kg

Weight: 1.90±0.02kg

DCR: ≤0.75mΩ

Cell Volume: 0.807L(without terminal)

Volume Energy Density: 581.2Wh/L

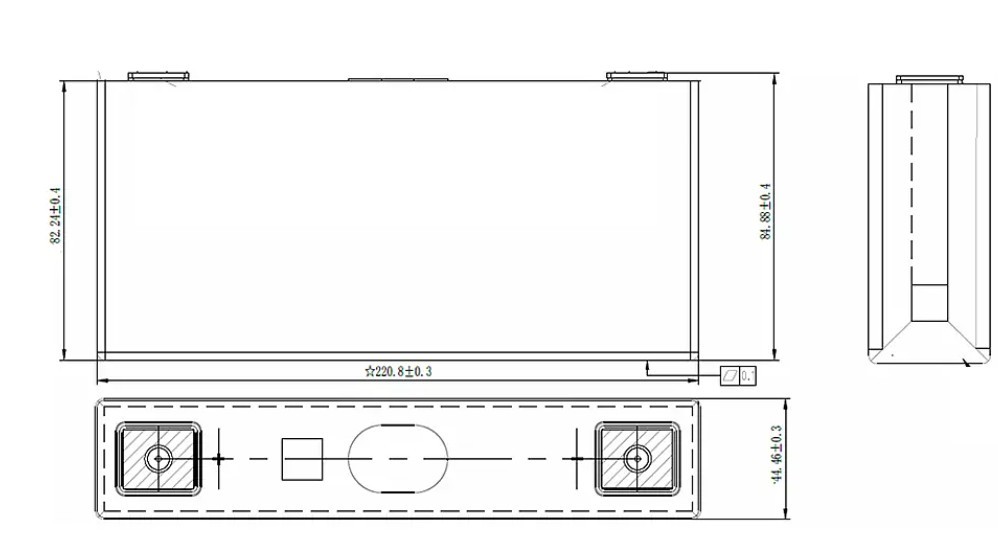

Dimension: 84.88±0.4* 220.80±0.3* 44.46±0.3mm

Charging Temperature: -20℃～55℃

Discharge Temperature: -30℃～55℃

Storage Temperature: -40℃～60℃

Charging Time: ≤30min( [10%,80%]SOC,25°C)/

≤25min( [30%,80%]SOC,25°C)/

≤27min( [80%SOC,100%],25°C)

Voltage Range: 2.8~4.35V(25℃,C/3,BOL)
